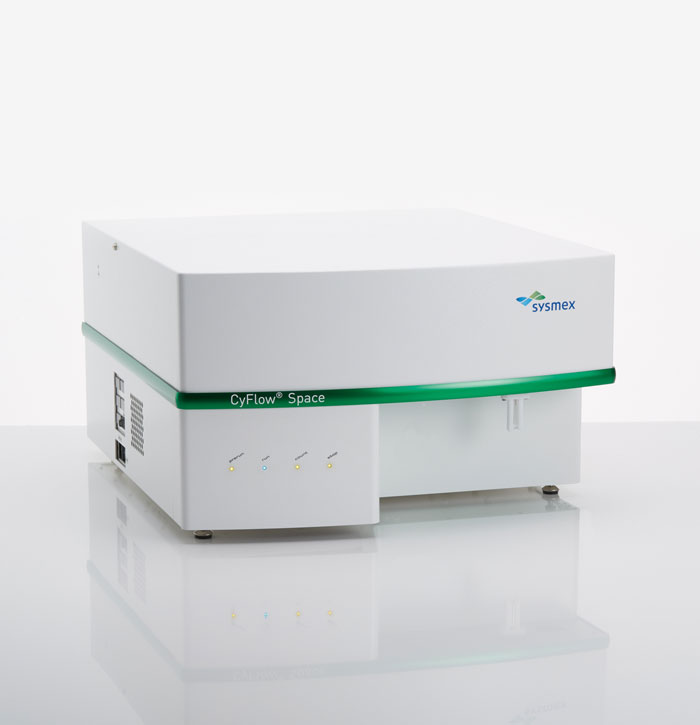

CyFlow Space

Add to wishlist
Category:

The CyFlow Space is a high-performance multi-laser flow cytometer, which offers the most flexible and reliable features for routine and research work. The advanced flow cytometry technology of the CyFlow Space has been designed to cover a wide range of applications.

CyFlow Space

Benchtop flow cytometer designed for cell and particle analysis and absolute counting. It can detect up to 13 colours, 2x FSC and 1x SSC channels. It is suited to a wide variety of applications, with its FloMax software.

Multiple applications availability

  • Fixed standard configurations and Customizable instrument – up to 5 light sources to choose from a wide range of 9 excitation wavelengths (375nm – 785 nm)
  • Can be upgraded with a CyFlow Cell Sorter
  • Combination of a flow chamber with a piezo element, including electric activation
  • Sorting input rates from 300 cells/second up to thousands of cells/second.
  • Sort target cells or particles non-destructively with high yield and purity
  • Closed system allowing for smooth process with reduced mechanical stress with no risk of environmental contamination.

Productivity and Efficiency

  • Can be combined with an autoloading station, CyFlow Space Autoloader
  • Compact design allowing for easy placement under a hood to avoid biohazardous situations.

  • Measurement Principle: flow cytometry – Quartz flow cuvette for laminar sample transport and hydrodynamic focusing

  • Up to 5 different light sources (laser or UV LED)

  • Completely closed fluidic system

  • Sample port with biosafety cleaning system

  • True Volumetric Absolute Counting based on mechanical volume measurement

  • Aspiration speed adjustable from 0.2µL to 10µL/s

  • Flexible choice of sample volume from 10 to 150µL

  • Liquid level sensors on waste bottles and sheath fluid to indicate replacement or cleaning

  • Throughput: optional autoloading station for 96-wells or 120 test tubes.

The CyFlow Sorter delivers closed, non-destructive cell and particle sorting withhigh purity. This Sorting option is available for the CyFlow Cube 8 and the CyFlow Space instruments. Optional cell sorting module add-on for CyFlow Cube 8, to sort cells of interest in total confidence.

Features & Benefits

  • Combination of a flow chamber with a piezo element, including electric activation
  • Sort target cells or particles non-destructively with high yield and purity
  • Closed system allowing for smooth process with reduced mechanical stress
  • Compact design allowing for easy placement under a hood to avoid biohazardous situations.
Features & Benefits

Multiple applications availability

  • Fixed standard configurations and Customizable instrument – up to 5 light sources to choose from a wide range of 9 excitation wavelengths (375nm – 785 nm)
  • Can be upgraded with a CyFlow Cell Sorter
  • Combination of a flow chamber with a piezo element, including electric activation
  • Sorting input rates from 300 cells/second up to thousands of cells/second.
  • Sort target cells or particles non-destructively with high yield and purity
  • Closed system allowing for smooth process with reduced mechanical stress with no risk of environmental contamination.

Productivity and Efficiency

  • Can be combined with an autoloading station, CyFlow Space Autoloader
  • Compact design allowing for easy placement under a hood to avoid biohazardous situations.
Specifications

  • Measurement Principle: flow cytometry – Quartz flow cuvette for laminar sample transport and hydrodynamic focusing

  • Up to 5 different light sources (laser or UV LED)

  • Completely closed fluidic system

  • Sample port with biosafety cleaning system

  • True Volumetric Absolute Counting based on mechanical volume measurement

  • Aspiration speed adjustable from 0.2µL to 10µL/s

  • Flexible choice of sample volume from 10 to 150µL

  • Liquid level sensors on waste bottles and sheath fluid to indicate replacement or cleaning

  • Throughput: optional autoloading station for 96-wells or 120 test tubes.

CyFlow Space Sorter Module

The CyFlow Sorter delivers closed, non-destructive cell and particle sorting withhigh purity. This Sorting option is available for the CyFlow Cube 8 and the CyFlow Space instruments. Optional cell sorting module add-on for CyFlow Cube 8, to sort cells of interest in total confidence.

Features & Benefits

  • Combination of a flow chamber with a piezo element, including electric activation
  • Sort target cells or particles non-destructively with high yield and purity
  • Closed system allowing for smooth process with reduced mechanical stress
  • Compact design allowing for easy placement under a hood to avoid biohazardous situations.
